Opis produktu

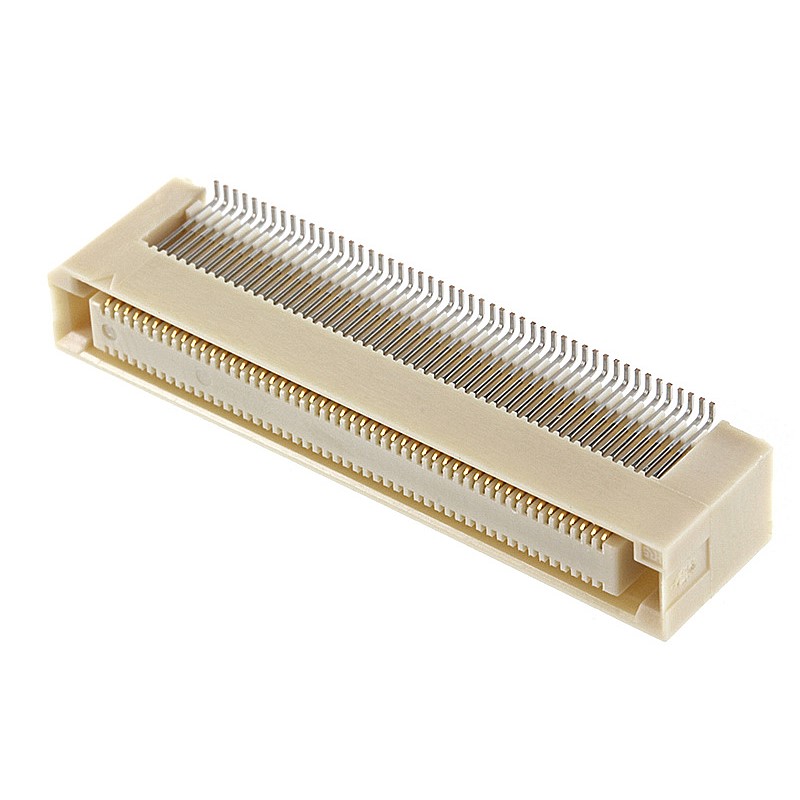

FX8C-100S-SV5(71) - Hirose - Board-to-Board connector 100 pin pitch 0.6 mm stacking height 8.95 mm

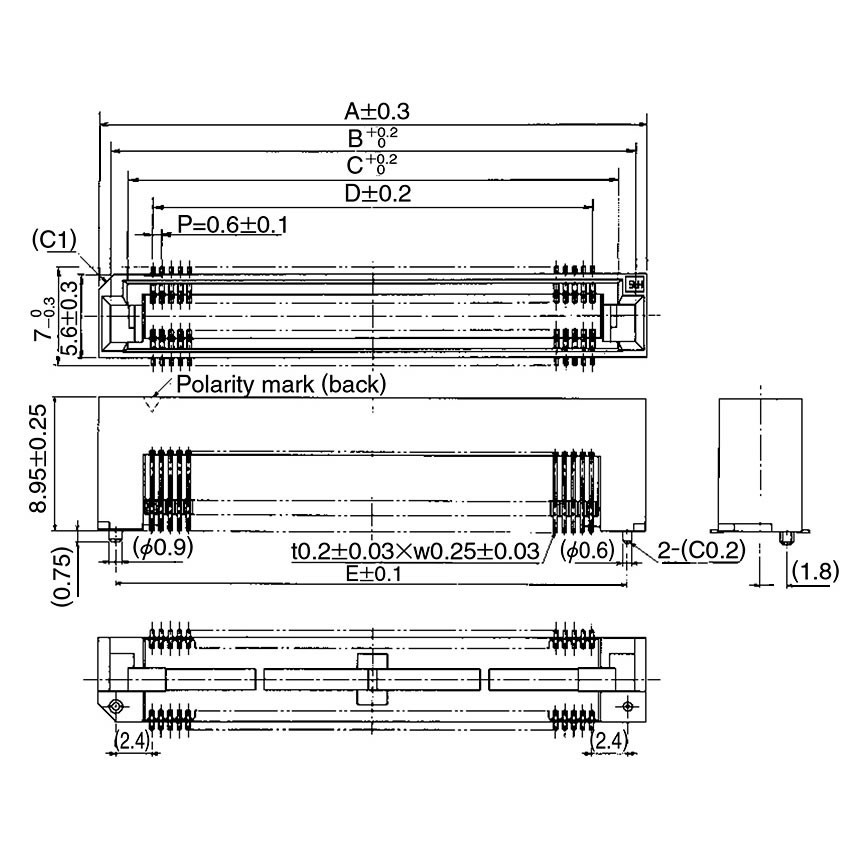

A - 36.6 mm; B - 35.05 mm; C - 32.8 mm , D - 29.4 mm; E - 34.2 mm
- Operating Voltage ≤ 100 Vac
- Operating Current ≤ 0.4 A
- Operating Temperature -55 °C - 85 °C
- Operating Life in Mating Cycles ≥ 50
- Number of Contacts 100
- Pitch 0.6 mm
- Dielectric Strength 300 Vac
- Packing Unit 108 piece
- weight 0.002 kg
