Opis produktu

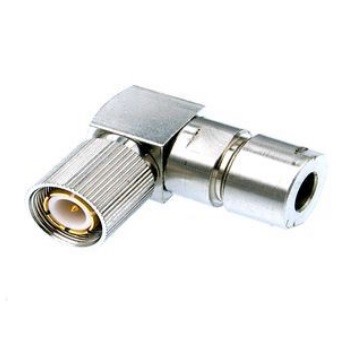

350.052.153Y1 - Plug crimp 75Ω. The ITT Cannon range of 1.6/5.6 Connectors aresuitable for use in 75 ohm communicationsystems. These connectors have become therecognised standard in telecommunicationsystems in many parts of the world.Designed to meet the requirements of DIN 47295,CECC 22240 and IEC 169-13
- Cable Numbers 2YCY 0.7/4.4RG59B/U, ST120, ST21
- Orientation:right angle
- Operating Voltage:≤ 330 Vrms
- Operating Temperature:-65 °C - 165 °C
- Frequency: 0 - 1 GHz
- Impedance:75 Ω
- Reflection Coefficient *
- With f = 0.1 GHz= 0.02 maximum
- With f = 0.1 – 0.5 GHz= 0.04 maximum
- With f = 0.5 – 1.0 GHz= 0.10 maximum
- Insulation Resistance: 10 GΩ minimum
