CPH47W23FGRASK złącze PCI Express op.

Opis produktu

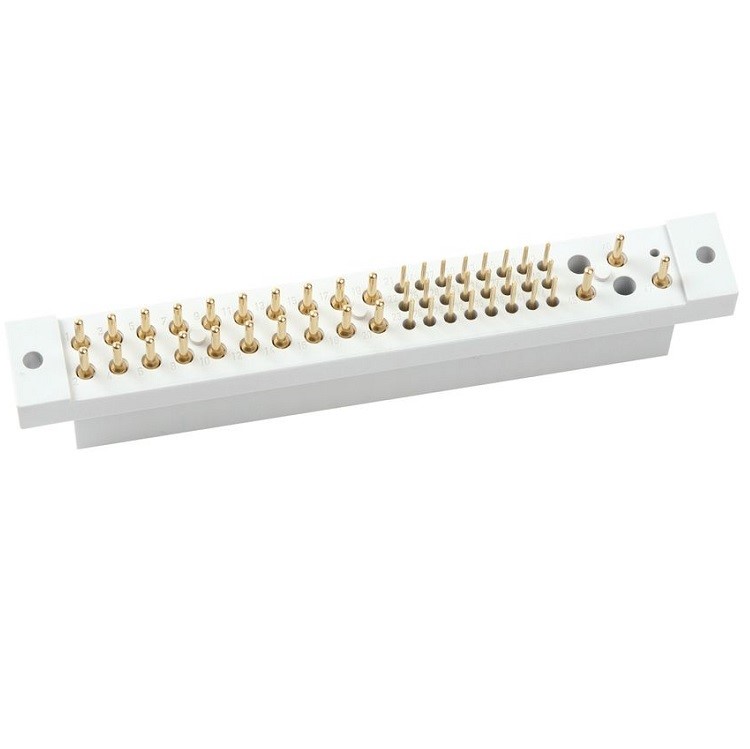

CPH47W23FGRASK9X - Compact PCI Female Connector 24x Signal+23x Power solder pin angled, seria CPH, 47 positions. MOQ10piece

• Pitch: 2,54mm
• Operating Temperature: -55 °C - 125 °C
• Operating Life in Mating Cycles: ≥ 250
• Operating Current: ≤ 3 A (20°C)
• Insulation Resistance (Min.): 5 GΩ (100 Vdc)
• Contact Resistance (Max.): 4 mΩ
• Packing Unit 10 piece
