Opis produktu

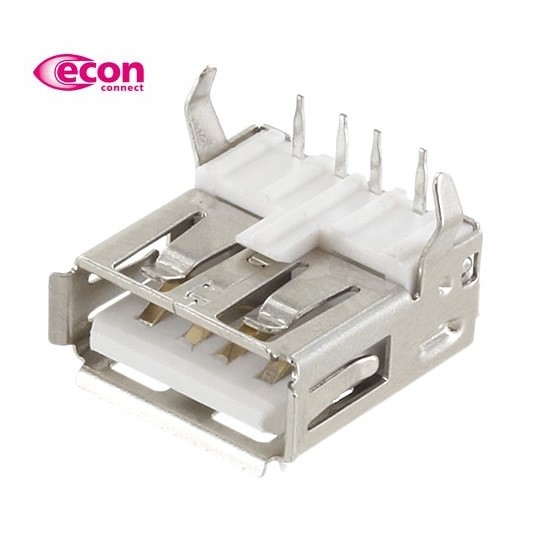

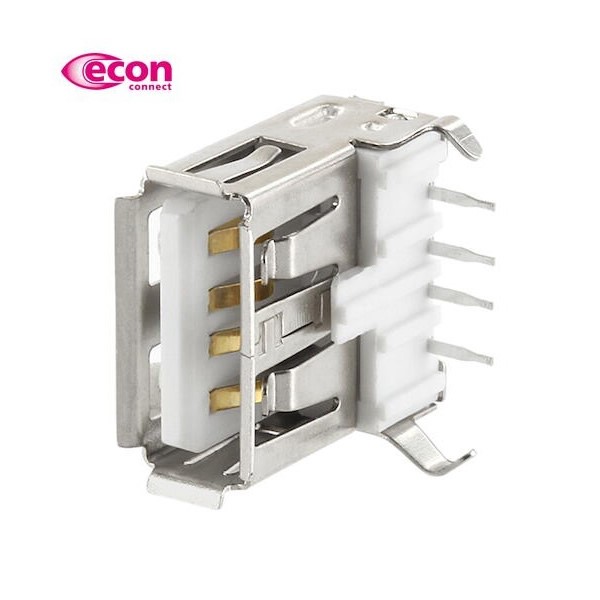

USB/BU1A - Gniazdo USB 2.0 białe; przewlekane (THT) kątowe 90°; brąz fosforowany
Operating Voltage ≤ 30 V
Operating Current (Nom.) 1.5 A
Operating Temperature -25 °C - 105 °C
Colour white
Material (Terminal) brass, tin plated
Material (Housing) metal, nickel plated
Material (Insulation) PBT
Material (Contact Area) brass, gold plated
Mounting PCB mounting
Dielectric Strength 750 Vac
Insulation Resistance (Min.) 1000 MΩ
Contact Resistance (Max.) 30 mΩ
Flammability Class UL 94 V-0
Insertion Force (Max.) 35 N
Extraction Force 10 N
