Opis produktu

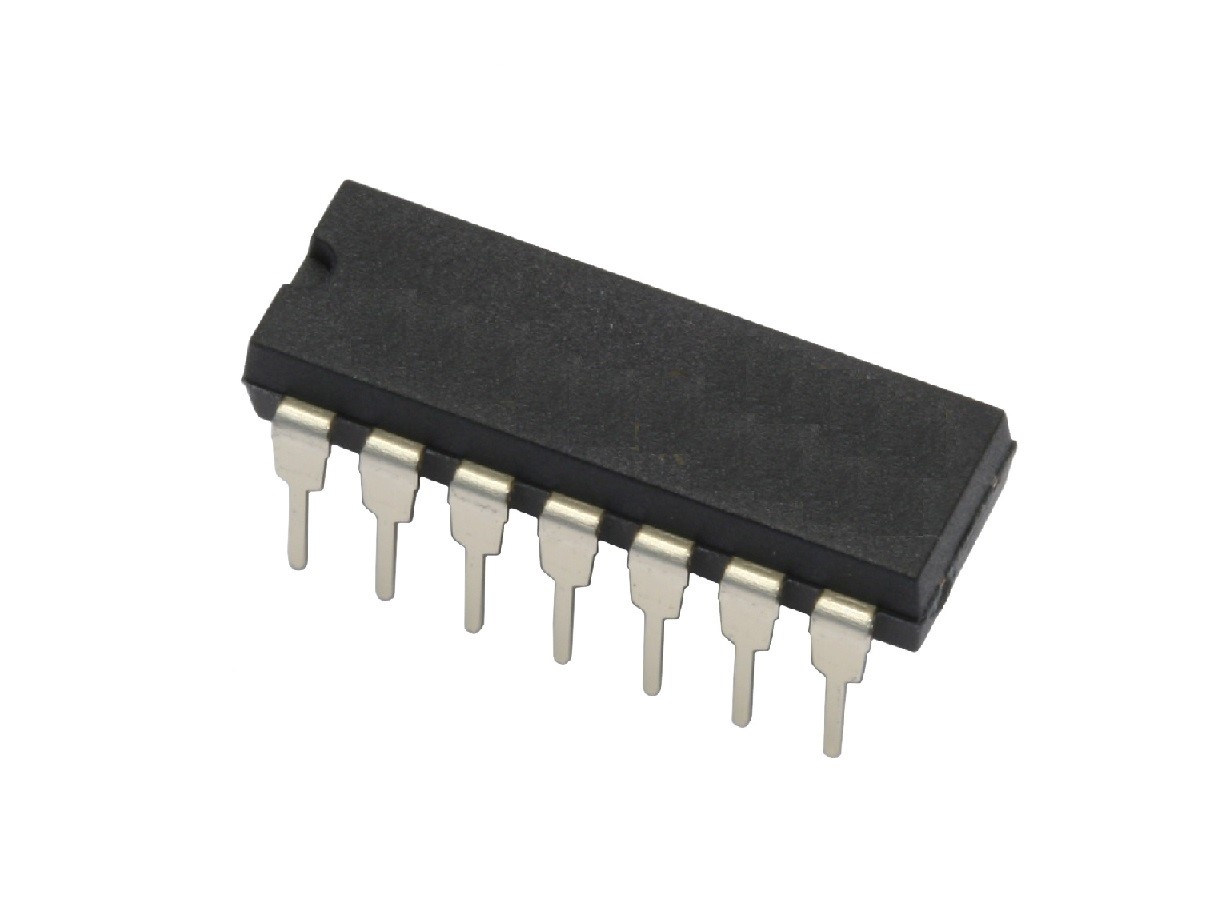

TL064CN - STMicroelectronics, Low input current (200pA), low power (200uA) 36V JFET Op-Amps, quad , high speed JFET input quad operational amplifiers incorporating well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset current, and low offset voltage temperature coefficients.
- VCC : ±18 V
- Vi : ±15 V
- Ptot : 600 mW
- High slew rate: 3.5 V/μs
- Toper: 0 C to + 70 C
- CMRR : 86 dB
- ICC : 200uA
- opakowanie fabryczne: 25
