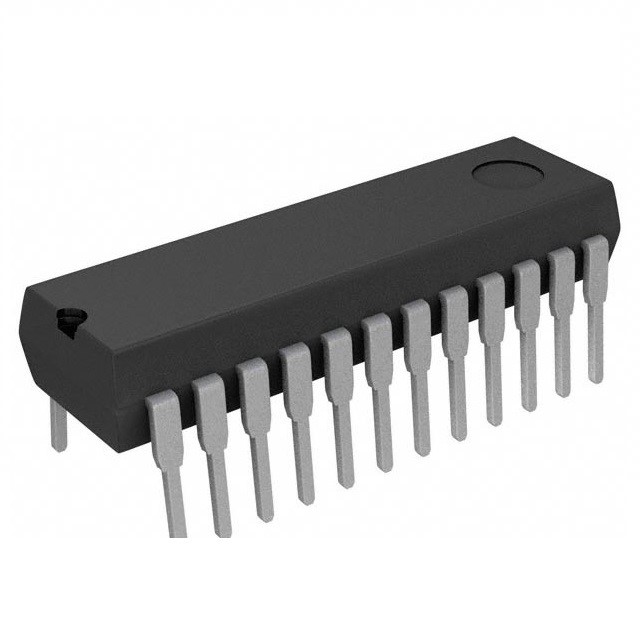

TA8122AN SDIP24 Toshiba
TA8122AN / AF and TA8123AN / AF are the AM / FM 1chip tuner ICs, which are designed for portable radios and 3V headphone radios. Built in FM F / E, AM / FM IF and FM ST DET AM detector coil, FM IFT and IF coupling condenser are not needed. For adopting ceramic discriminator and ceramic resonator, it is not necessary to adjust the FM quad detector Circuit and FM ST DET VCO circuit.
S curve characteristics of FM detection output in TA8122AN /
TA8122AN / AF: Reverse characteristic
Compact pakage
TA8122AN / 23AN: Shrink DIP 24 pin (1.78mm pitch)
Operating supply voltage range VCC= 1.8~7.0V (Ta = 25°C)
