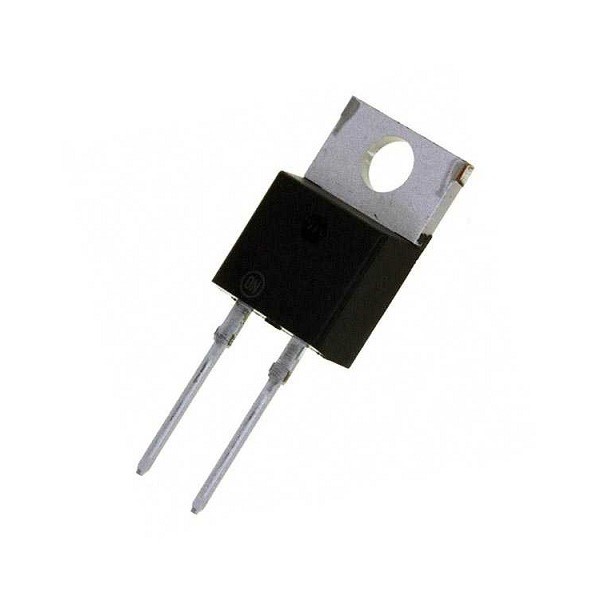

RHRP3060 dioda prostownicza TO220AC

Opis produktu

RHRP3060 ON Semi- is a hyperfast diode with soft recovery characteristics. It has the half recovery time of ultrafast diodes and is silicon nitride passivated ionimplanted epitaxial planar construction. These devices are intended to be used as freewheeling/ clamping diodes and diodes in a variety of switching power supplies and other power switching applications. Their low stored charge and hyperfast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors

• V_RRM: 600V
• TJ : −65 to +175°C
• V_FM : 1.20V
• I_o(rec) : 30A     TC= 25 °C
• I_{fsm max}: 325A
• I_{R max}: 0,25A
• t_rr: 45ns
• R_θJS :2,0°C/W
• opakowanie ; listwa 50szt
