R9316R0Y 16-poz. zdajnik HEX/BCD, kąt

Opis produktu

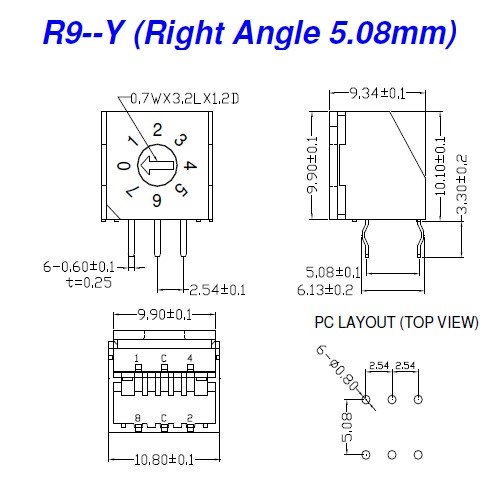

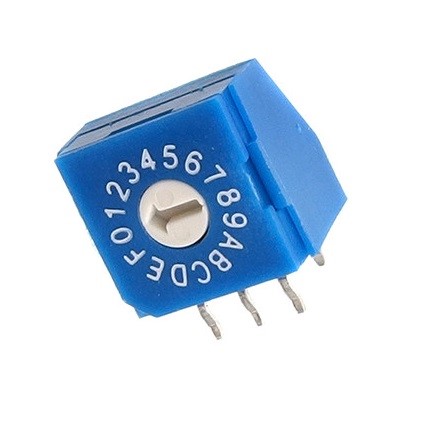

R9316R0Y. Rotary Coded Switch Right ASngled 5,08mm

• Contact Rating
• Switching : 5VDC 20mA (Min. AC/DC 20mA 1μA)
• Non Switching : Max. 50VDC 100mA
• Contact Resistance : 100mΩ Max
• Insulation Resistance : 1,000MΩ Min. at 100VDC
• Dielectric Strength : 250VAC for 1 minute
• Operating Force : 250gf/cm
• Life : 20,000 Steps
• Opertaing temp. : -40°C ~+85°C
