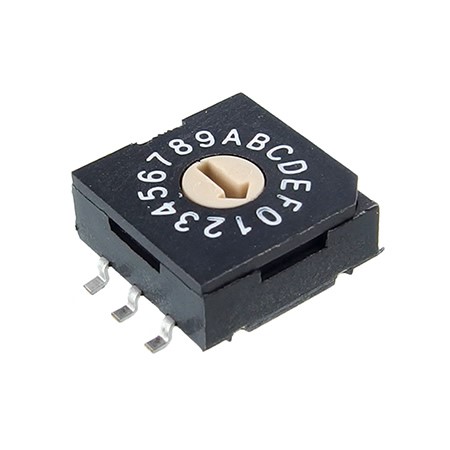

R9316R0S. Rotary Coded Switch
- Contact Rating
- Switching : 5VDC 20mA (Min. AC/DC 20mA 1μA)
- Non Switching : Max. 50VDC 100mA
- Contact Resistance : 100mΩ Max
- Insulation Resistance : 1,000MΩ Min. at 100VDC
- Dielectric Strength : 250VAC for 1 minute
- Operating Force : 250gf/cm
- Life : 20,000 Steps
- Opertaing temp. : -40°C ~+85°C
