Opis produktu

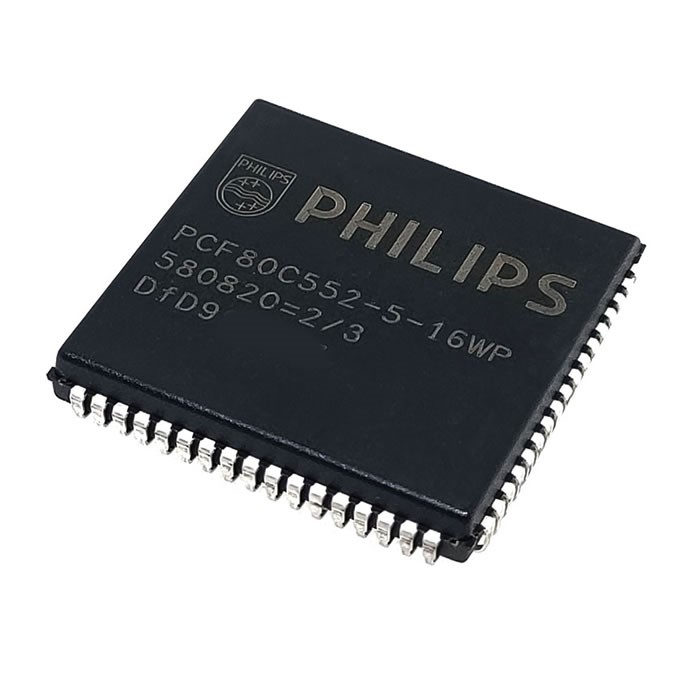

PCF80C552-5-16WP - dc9748 - Single-chip 8-bit microcontroller with 10-bit A/D, capture/compare timer, high-speed outputs, PWM. Features:
- • 80C51 central processing unit
- • 8k × 8 ROM expandable externally to 64k bytes
- • An additional 16-bit timer/counter coupled to four capture registers and three compare registers
- • Two standard 16-bit timer/counters
- • 256 × 8 RAM, expandable externally to 64k bytes
- • Capable of producing eight synchronized, timed outputs
- • A 10-bit ADC with eight multiplexed analog inputs
- • Two 8-bit resolution, pulse width modulation outputs
- • Five 8-bit I/O ports plus one 8-bit input port shared with analog inputs
- • I 2C-bus serial I/O port with byte oriented master and slave functions
- • Full-duplex UART compatible with the standard 80C51
- • On-chip watchdog timer
