Opis produktu

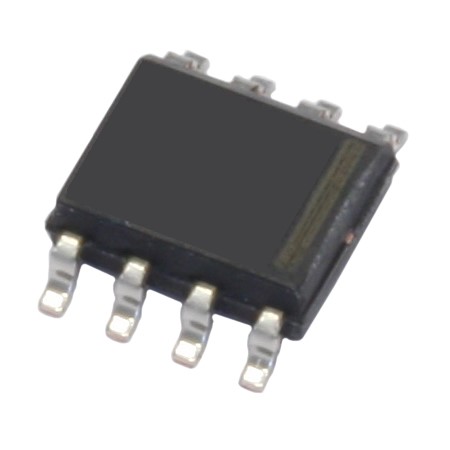

NJM4580M is a dual operational amplifier, specially designed for improving the tone control, which is most suitable for the audio application. Featuring noiseless, higher gain bandwidth, high output current and low distortion ratio, and it is most suitable not only for acoustic electronic parts of audio pre-amp and active filter, but also for the industrial measurement tools.
- Operating Voltage ±2V~±18V
- Low Input Noise Voltage 0.8μVrms typ. (RIAA)
- Wide GBW 15MHz typ.
- Low Distortion 0.0005%
- Slew Rate 5V/μs typ.
- Operating Temperature: - 40 C + 85 C
- factory pack: 2000
