Opis produktu

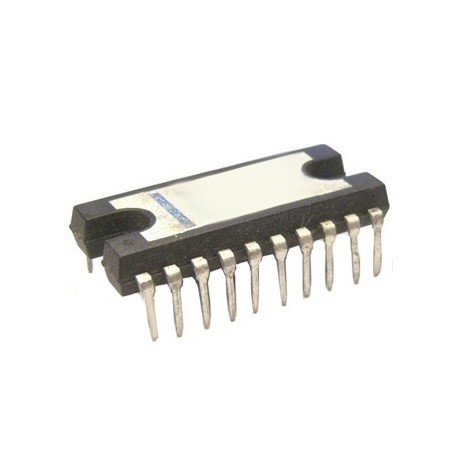

LA 4505 5L3 DIP20H SANYO 2-channel AF power amplifier 2 x 8.5 W @ 3 Ω. Low idling current (20mA/2 channels) enabling prolongedbattery life.
• Less dependence of idling current on Vcc.
• High power (4.5W typ.×2/15V *ohm).
• High ripple rejection (60dB at steady state).
Since filters are arranged in 3 stages (including 1 stage
inside the IC) to attain satisfactory ripple rejection at tran-
sient state, ripple occuring at the time of motor start can
be prevented from mixing in.
- Vcc: 9...23 V (typ. 15 V);
- Iccq: 20 mA;
- Io peak: 2.5 A/Channel;
- Rin: 30 kΩ;
- Ptot: <15 W;
- t op: -20...+75 °C.
