Opis produktu

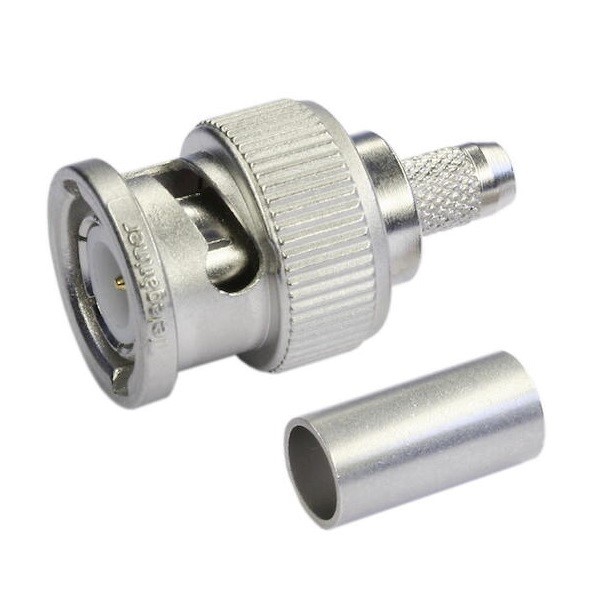

J01002A1350 - Telegärtner J01002A1350 BNC-Plug crimp 75Ω, G13/G50
- Orientation:straight
- Operating Voltage:≤ 500 Veff
- Operating Temperature:-65 °C - 165 °C
- Frequency:≤ 4 GHz
- Impedance:75 Ω
- Coaxial Cable:0.4/2.5
- Operating Life in Mating Cycles: ≥ 1000
- Material (Outer Conductor):brass, nickel plated
- Material (Inner Conductor):beryllium copper, gold plated
- Material (Insulation):PTFE
- Mounting: cable mounting
- Dielectric Strength:1,500 Veff
- Material (Bayonet):zinc diecast, nickel plated
- Material (Coupling Spring):beryllium copper
- Material (Ferrule):copper, nickel plated
- Insulation Resistance (Min.) 5 GΩ
- Contact Resistance Outer Conductor (Max.) 5 mΩ
- Contact Resistance Inner Conductor (Max.) 20 mΩ
