Opis produktu

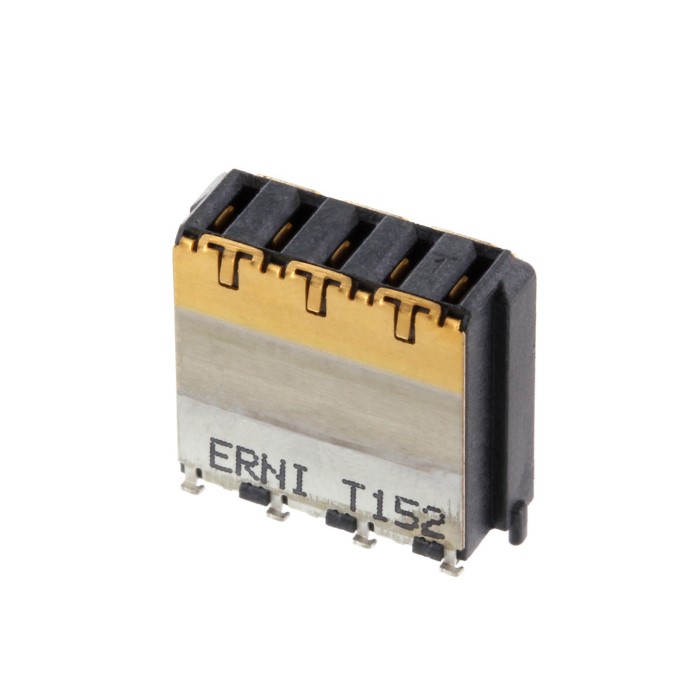

ERNI214549 - Board-to-Board & Mezzanine Connectors 5P 10MM HP FML VERT SMD B-B MEZZ - straight female connector. Data rate25 Gbit/s
- Stacking Height: 10mm
- Operating Temperature: -55 °C - 125 °C
- Operating Life in Mating Cycles: ≥ 500
- Soldering Heat: ≤ 260 °C
- Number of Contacts: 5
- Pitch: 2.0 mm
- Series: MicroSpeed
- Dielectric Strength 750 Vac
- Ampacity per contact (100°C): 3,4A
- Ampacity per contact (70°C): 5A
- Ampacity: 6.6 A per contact (20°C)
- Packing Unit 420 piece ,Tape&reel
- weight 0.001 kg
