Opis produktu

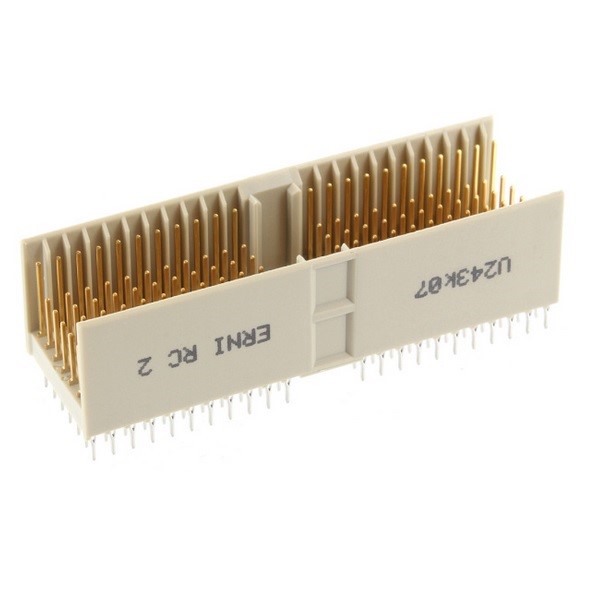

053007 ERmet Male Type A 154p with peg standard IEC 61076-4-101.
- Factory Pack Quantity:32pcs
- Terminal press-fit
- Number of Rows 7
- Kind male connector
- Version with positioning pin
- Orientation straight
- Size Code A
- Operating Temperature -55 °C - 125 °C
- Operating Life in Mating Cycles ≥ 250
- Material (Terminal) phosphor bronze, tin plated
- Material (Housing) PBT
- Material (Contact Area) phosphor bronze, gold plated
- Mounting PCB mounting
- Number of Contacts 154
- Pitch 2 mm
- Series ERmet
- CTI Value 275 / 175
- Packaging tray 32
