Opis produktu

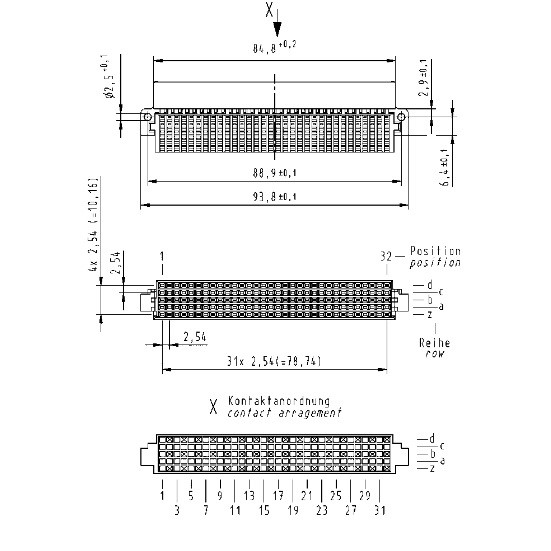

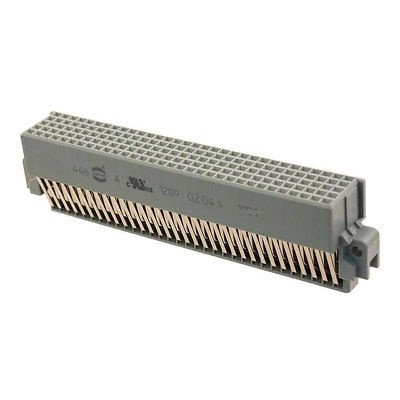

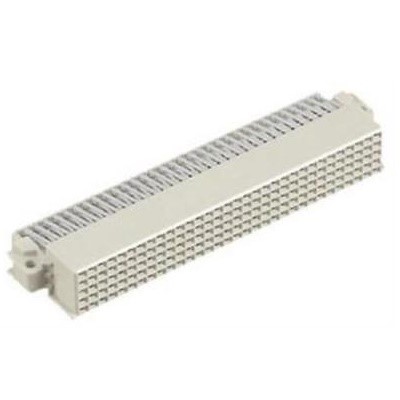

Harting 02 04 048 1101. har-bus® 64 DIN-Power female connector, angled Motherboard to daughtercard. Railway classification
UWAGA CENA I TERMIN NA ZAPYTANIE
- Contact rows: 5
- Contact spacing: 2,54
- Rated current: 1A
- Insulation resistance: ≥ 1010 Ω
- Contact resistance: ≤ 20 mΩ
- Limiting temperature: -55 ... +125 °C
- Mating cycles: ≥ 500
- Test voltage Ur.m.s. : 1kV
- Packaging size: 20
